| MOQ: | 1 jednostka |
| Cena £: | Negotation |
| Standardowe opakowanie: | Pakowane przez drewnianą skrzynkę |
| Okres dostawy: | 5-8 dni roboczych |
| Metoda płatności: | T/T, Western Union |
| Pojemność dostaw: | 1000 jednostek miesięcznie |

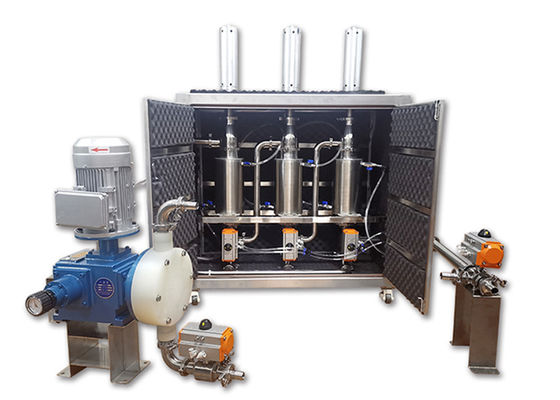

High Power 10KW Three in One Combination Ultrasonic Sonochemical Equipment
Description:
The combination type pilot machine ultrasonic sonochemical equipment is an experimental device that integrates ultrasonic technology. It can generate a series of nearly extreme conditions in the medium of chemical reactions. Energy can not only excite or promote many chemical reactions, accelerate the speed of chemical reactions, but also change the direction of many chemical reactions to produce unexpected effects and effects. The sonochemical phenomenon caused by high temperature and high pressure generated by ultrasonic cavitation reaction is a unique form of energy and substance exchange in sonochemistry.
The ultrasonic cavitation effect brings high temperature (about 4500 ℃) and high pressure (about 50MPa) at the molecular level, producing rapid effects in an instant, making it an efficient and convenient processing method; Simultaneously processing capacities ranging from a few milliliters in the laboratory to several tons in industrial production can be effectively achieved, with a wide range of applications; It is an environmentally friendly and pollution-free application that does not require the addition of other chemical components throughout the entire processing process, improving production efficiency while effectively reducing chemical pollution.
Parameters:
| Model | FSD-2030-PI-3 |
| Name |
20Khz Industrial Liquid Ultrasonic Processing |
| Frequency | 20Khz |
| Power | 10Kw |
| Input Voltage | 220V±10%,50/60Hz |
| Emitter Materials | Titanium Alloy |
| Diameters of Emitter Tip | Φ38mm, Φ50mm or Customized |
| Durable Temperature | 0-80℃ |
| Application | Ultrasonic extraction, dispersion, emulsification, defoaming, crushing, stirring |
Application :
1. Homogenization: Mixing liquids, powders, and other materials uniformly through high shear forces.
2. Cell division: Promotes cell division in biological and pharmaceutical research.
3. Ultrasonic chemistry: Stimulate or promote chemical reactions, improve reaction speed and efficiency.
4. Degassing or extraction: used to extract active ingredients or remove gases.
5. Cavitation effect: High temperature and high pressure are generated by the explosion of bubbles in liquids, which are used for various chemical reactions and material treatments
High Power 10KW Three in One Combination Ultrasonic Sonochemical Equipment
